製品案内PRODUCTS

HARDWARE 一覧

Acqiris 製品

8ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA120P 2ch



1ch

1GS/s

500MS/s(LSR option)

2GS/(INT option)

500MHz 2Gサンプル/ch

8ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA108P 1ch 1GS/s

500MS/s(LSR option)

500MHz 2Gサンプル/ch

14ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA240P 2ch 4GS/s 2GHz 2Gサンプル/ch

14ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA248P 1ch 8GS/s 2.5GHz 2Gサンプル/ch

14ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA230P 1ch 4GS/s 2GHz 2Gサンプル/ch

14ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA217P 1ch 2GS/s 980MHz 2Gサンプル/ch

14ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA220P 2ch 2GS/s

1GS/s     option

1.2GHz 2Gサンプル/ch

14ビット Thunderbolt3 高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA230E 1ch 2GS/s     option 1.2GHz 2Gサンプル/ch



14ビット Thunderbolt3 高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
SA220E 2ch 2GS/s

1GS/s     option

1.2GHz 2Gサンプル/ch



12ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
U5303A 2ch 0.5-4GS/s 2GHz 2Gサンプル

10ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
U5310A 2ch 5-10GS/s 2.5GHz 3.2Gサンプル

8ビット高速デジタイザ 販売停止製品ですが、興味のあるかたは、ご相談ください

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
U1084A 2ch 2-4GS/s 1GHz 256

-512Mサンプル

8ビット高速デジタイザ

製品名 チャンネル 最大サンプル/s 帯域幅 最大メモリ
U5309A 1ch/2ch/4ch/8ch

4ch/8chは、ご相談ください

0.5-2GS/s 500MHz 128M~2Gサンプル

時間・デジタルコンバーター

製品名 チャンネル 分解能 最大メモリ
U1051A 6ch 50ps マルチヒット

Elsys 製品

TraNET EPC-LAN Data Acquisition Instrument

製品名 仕様
TraNET EPC-LAN Data Acquisition Instrument ・工業用PC、キーボード、マウスを付属

・スタンドアローン及びネットワーク接続での使用可能

・デジタイザは、TPCE/TPCELEシリーズによる

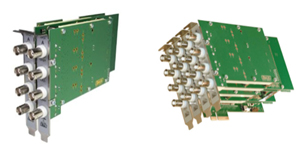

4CH 16ビット高分解能デジタイザ

製品名 チャネル 最大サンプル/s 帯域幅 最大メモリ
TPCE-0216-4S 4chシングルエンド
2ch差動
14bit 2MS/s
16bit 2MS/s
1MHz 128Mサンプル
TPCE-0216-4D 4chシングルエンド
4ch差動
14bit 2MS/s
16bit 2MS/s
1MHz 128Mサンプル
TPCE-1016-4S 4chシングルエンド
2ch差動
14bit 10MS/s
16bit 5MS/s
5MHz 128Mサンプル
TPCE-1016-4D 4chシングルエンド
4ch差動
14bit 10MS/s
16bit 5MS/s
5MHz 128Mサンプル
TPCE-2016-4S 4chシングルエンド
2ch差動
14bit 20MS/s
16bit 5MS/s
10MHz 128Mサンプル
TPCE-2016-4D 4chシングルエンド
4ch差動
14bit 20MS/s
16bit 5MS/s
10MHz 128Mサンプル
TPCE-4016-4S 4chシングルエンド
2ch差動
14bit 40MS/s
16bit 10MS/s
18MHz 128Mサンプル
TPCE-4016-4D 4chシングルエンド
4ch差動
14bit 40MS/s
16bit 10MS/s
18MHz 128Mサンプル
TPCE-8016-4S 4chシングルエンド
2ch差動
14bit 80MS/s
16bit 20MS/s
30MHz 128Mサンプル
TPCE-8016-4D 4chシングルエンド
4ch差動
14bit 80MS/s
16bit 20MS/s
30MHz 128Mサンプル
TPCE-12016-4S 4chシングルエンド
2ch差動
14bit 120MS/s
16bit 60MS/s
60MHz 128Mサンプル
TPCE-12016-4D 4chシングルエンド
4ch差動
14bit 120MS/s
16bit 60MS/s
60MHz 128Mサンプル
TPCE-24016-4S 4chシングルエンド
2ch差動
14bit 240MS/s
16bit 60MS/s
120MHz 128Mサンプル
TPCE-24016-4D 4chシングルエンド
4ch差動
14bit240MS/s
16bit 60MS/s
120MHz 128Mサンプル

8CH 16ビット高分解能デジタイザ

製品名 チャネル 最大サンプル/s 帯域幅 最大メモリ
TPCE-0216-8S 8chシングルエンド
4ch差動
14bit 2MS/s
16bit 2MS/s
1MHz 128Mサンプル
TPCE-0216-8D 8chシングルエンド
8ch差動
14bit 2MS/s
16bit 2MS/s
1MHz 128Mサンプル
TPCE-1016-8S 8chシングルエンド
4ch差動
14bit 10MS/s
16bit 5MS/s
5MHz 128Mサンプル
TPCE-1016-8D 8chシングルエンド
8ch差動
14bit 10MS/s
16bit 5MS/s
5MHz 128Mサンプル
TPCE-2016-8S 8chシングルエンド
4ch差動
14bit 20MS/s
16bit 5MS/s
10MHz 128Mサンプル
TPCE-2016-8D 8chシングルエンド
8ch差動
14bit 20MS/s
16bit 5MS/s
10MHz 128Mサンプル
TPCE-4016-8S 8chシングルエンド
4ch差動
14bit 40MS/s
16bit 10MS/s
20MHz 128Mサンプル
TPCE-4016-8D 8chシングルエンド
8ch差動
14bit 40MS/s
16bit 10MS/s
20MHz 128Mサンプル
TPCE-8016-8S 8chシングルエンド
4ch差動
14bit 80MS/s
16bit 20MS/s
40MHz 128Mサンプル
TPCE-8016-8D     8chシングルエンド
8ch差動
14bit 80MS/s
16bit 20MS/s
40MHz 128Mサンプル
TPCE-12016-8S 8chシングルエンド
4ch差動
14bit 120MS/s
16bit 30MS/s
60MHz 128Mサンプル
TPCE-12016-8D 8chシングルエンド
8ch差動
14bit 120MS/s
16bit 30MS/s
60MHz 128Mサンプル
TPCE-24016-8S 8chシングルエンド
4ch差動
14bit 240MS/s
16bit 60MS/s
120MHz 128Mサンプル
TPCE-24016-8D 8chシングルエンド
8ch差動
14bit 240MS/s
16bit 60MS/s
120MHz 128Mサンプル



4CH 14ビット高分解能デジタイザ(LE版;16bitオプションあり)

製品名 チャネル 最大サンプル/s 帯域幅 最大メモリ
TPCE-LE-0214-4S 4chシングルエンド
2ch差動
14bit 2MS/s 1MHz 128Mサンプル
TPCE-LE-0214-4D 4chシングルエンド
4ch差動
14bit 2MS/s 1MHz 128Mサンプル
TPCE-LE-1014-4S 4chシングルエンド
2ch差動
14bit 10MS/s 5MHz 128Mサンプル
TPCE-LE-1014-4D 4chシングルエンド
4ch差動
14bit 10MS/s 5MHz 128Mサンプル
TPCE-LE-2014-4S 4chシングルエンド
2ch差動
14bit 20MS/s 10MHz 128Mサンプル
TPCE-LE-2014-4D 4chシングルエンド
4ch差動
14bit 20MS/s 10MHz 128Mサンプル
TPCE-LE-4014-4S 4chシングルエンド
2ch差動
14bit 40MS/s 18MHz 128Mサンプル
TPCE-LE-4014-4D 4chシングルエンド
4ch差動
14bit 40MS/s 18MHz 128Mサンプル
TPCE-LE-8014-4S 4chシングルエンド
2ch差動
14bit 80MS/s 30MHz 128Mサンプル
TPCE-LE-8014-4D 4chシングルエンド
4ch差動
14bit 80MS/s 30MHz 128Mサンプル
TPCE-LE-12014-4S 4chシングルエンド
2ch差動
14bit 120MS/s 60MHz 128Mサンプル
TPCE-LE-12014-4D 4chシングルエンド
4ch差動
14bit 120MS/s 60MHz 128Mサンプル
TPCE-LE-24014-4S 4chシングルエンド
2ch差動
14bit 240MS/s 120MHz 128Mサンプル
TPCE-LE-24014-4D 4chシングルエンド
4ch差動
14bit240MS/s 120MHz 128Mサンプル

8CH 14ビット高分解能デジタイザ(LE版;16bitオプションあり)

製品名 チャネル 最大サンプル/s 帯域幅 最大メモリ
TPCE-LE-0214-8S 8chシングルエンド
4ch差動
14bit 2MS/s 1MHz 128Mサンプル
TPCE-LE-0214-8D 8chシングルエンド
8ch差動
14bit 2MS/s 1MHz 128Mサンプル
TPCE-LE-1014-8S 8chシングルエンド
4ch差動
14bit 10MS/s 5MHz 128Mサンプル
TPCE-LE-1014-8D 8chシングルエンド
8ch差動
14bit 10MS/s 5MHz 128Mサンプル
TPCE-LE-2014-8S 8chシングルエンド
4ch差動
14bit 20MS/s 10MHz 128Mサンプル
TPCE-LE-2014-8D 8chシングルエンド
8ch差動
14bit 20MS/s 10MHz 128Mサンプル
TPCE-LE-4014-8S 8chシングルエンド
4ch差動
14bit 40MS/s 20MHz 128Mサンプル
TPCE-LE-4014-8D 8chシングルエンド
8ch差動
14bit 40MS/s 20MHz 128Mサンプル
TPCE-LE-8014-8S 8chシングルエンド
4ch差動
14bit 80MS/s 40MHz 128Mサンプル
TPCE-LE-8014-8D 8chシングルエンド
8ch差動
14bit 80MS/s 40MHz 128Mサンプル
TPCE-LE-12014-8S 8chシングルエンド
4ch差動
14bit 120MS/s 60MHz 128Mサンプル
TPCE-LE-12014-8D 8chシングルエンド
8ch差動
14bit 120MS/s 60MHz 128Mサンプル
TPCE-LE-24014-8S 8chシングルエンド
4ch差動
14bit 240MS/s 120MHz 128Mサンプル
TPCE-LE-24014-8D 8chシングルエンド
8ch差動
14bit 240MS/s 120MHz 128Mサンプル



16ビット絶縁高分解能デジタイザ

製品名 チャネル 最大サンプル/s 帯域幅 最大メモリ
TPCE-I-0116-4 4chシングルエンド 16bit 2MS/s 1MHz 128Mサンプル
TPCE-I-0116-8 8chシングルエンド 16bit 2MS/s 1MHz 128Mサンプル

TraNET FE 204 LAN data Acquisition Instrument(通常版とLight Edition版あり)

製品名 チャネル 最大サンプル/s 分解能 最大メモリ
1x4S/02/16 4chシングルエンド
2ch差動
2MS/s 16bit 32MS/ch
1x4D/02/16 4chシングルエンド
4ch差動
2x4S/02/16 8chシングルエンド
4ch差動
1x8S/02/16 8chシングルエンド
4ch差動
16MS/ch
1x4S/10/16 4chシングルエンド
2ch差動
10MS/s
5MS/s
14bit
16bit
32MS/ch
1x4D/10/16 4chシングルエンド
4ch差動
2x4S/10/16 4chシングルエンド
2ch差動
1x8S/10/16 8chシングルエンド
4ch差動
16MS/ch
1x4S/20/16 4chシングルエンド
2ch差動
20MS/s
5MS/s
14bit
16bit
32MS/ch
1x4D/20/16 4chシングルエンド
4ch差動
2x4S/20/16 8chシングルエンド
4ch差動
1x8S/20/16 8chシングルエンド
4ch差動
16MS/ch
1x4S/40/16 4chシングルエンド
2ch差動
40MS/s
10MS/s
14bit
16bit
32MS/ch
1x4D/40/16 4chシングルエンド
4ch差動
2x4S/40/16 8chシングルエンド
4ch差動
1x4S/80/16 4chシングルエンド
2ch差動
80MS/s
20MS/s
14bit
16bit
32MS/ch
1x4D/80/16 4chシングルエンド
4ch差動
2x4S/80/16 8chシングルエンド
4ch差動
1x4S/120/16 4chシングルエンド
2ch差動
120MS/s
60MS/s
14bit
16bit
32MS/ch
1x4D/120/16 4chシングルエンド
4ch差動
2x4S/120/16 8chシングルエンド
4ch差動
1x4S/240/16 4chシングルエンド
2ch差動
240MS/s
60MS/s
14bit
16bit
32MS/ch
1x4D/240/16 4chシングルエンド
4ch差動
2x4S/240/16 8chシングルエンド
4ch差動

TraNET FE 404 LAN data Acquisition Instrument(通常版とLight Edition版あり)

製品名 チャネル 最大サンプル/s 分解能 最大メモリ
3x4S/02/16 12chシングルエンド
6ch差動
2MS/s 16bit 32MS/ch
2x4D/02/16 8chシングルエンド
8ch差動
4x4S/02/16 16chシングルエンド
8ch差動
2x8S/02/16 16chシングルエンド
8ch差動
16MS/ch
3x4S/10/16 12chシングルエンド
6ch差動
10MS/s
5MS/s
14bit
16bit
32MS/ch
2x4D/10/16 8chシングルエンド
8ch差動
4x4S/10/16 16chシングルエンド
8ch差動
2x8S/10/16 16chシングルエンド
8ch差動
16MS/ch
3x4S/20/16 12chシングルエンド
6ch差動
20MS/s
5MS/s
14bit
16bit
32MS/ch
2x4D/20/16 8chシングルエンド
8ch差動
4x4S/20/16 16chシングルエンド
8ch差動
2x8S/20/16 16chシングルエンド
8ch差動
16MS/ch
3x4S/40/16 12chシングルエンド
6ch差動
40MS/s
10MS/s
14bit
16bit
32MS/ch
2x4D/40/16 8chシングルエンド
8ch差動
4x4S/40/16 16chシングルエンド
8ch差動
3x4S/80/16 12chシングルエンド
6ch差動
80MS/s
20MS/s
14bit
16bit
32MS/ch
2x4D/80/16 8chシングルエンド
8ch差動
4x4S/80/16 16chシングルエンド
8ch差動
3x4S/120/16 12chシングルエンド
6ch差動
120MS/s
60MS/s
14bit
16bit
32MS/ch
2x4D/120/16 8chシングルエンド
8ch差動
4x4S/120/16 16chシングルエンド
8ch差動
3x4S/240/16 12chシングルエンド
6ch差動
240MS/s
60MS/s
14bit
16bit
32MS/ch
2x4D/240/16 8chシングルエンド
8ch差動
4x4S/240/16 16chシングルエンド
8ch差動

TranAX4.0 Data acquisition Software

データ アクイジション ソフトウエア (TranAX 40.:通常版、Tran AX4.0 LE:機能限定版)

その他(シャーシ・ボードコンピュータ・インターフェイス)

製品名 仕様
●761-CPRO4AR
●02D009-00-500G-WP7
●cPCI to PCIe接続用インタフェースキット(3m)
●cPCI 4スロットシャーシ
●CPUボード500GB SATA HDD内臓
http://sine.ni.com/nips/cds/view/p/lang/ja/nid/202056
